Description

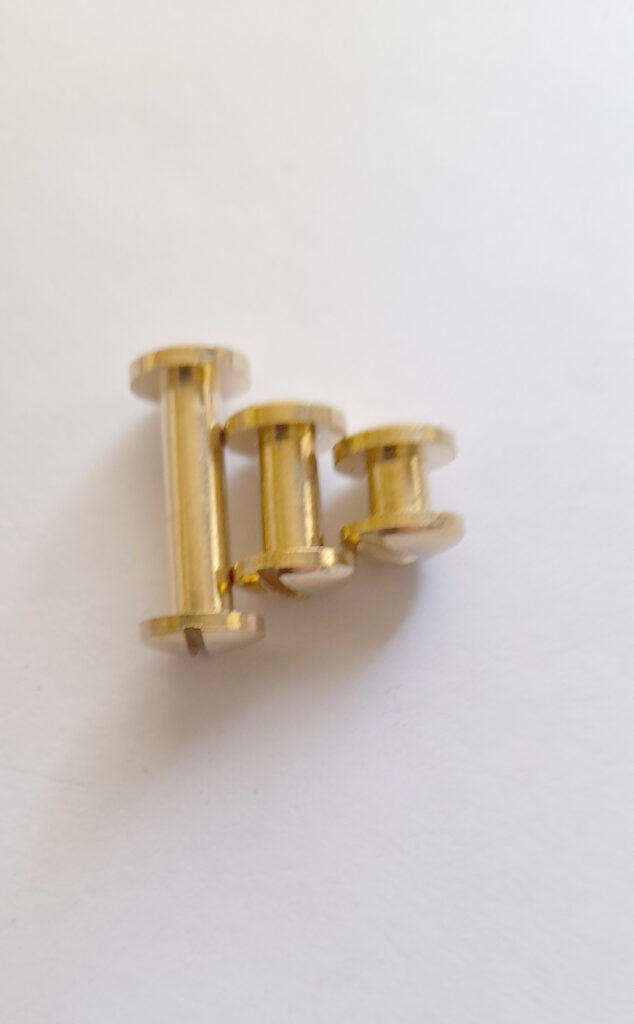

Chicago Screws – Solid Brass
8mm Diameter Cambered Head
With 4mm, 8mm or 15mm high post
Description:
Easy to Use –
These Chicago Screws are very easy to use.
Just make a hole where you want,
push the Cambered Head top (4mm diameter post) through the hole
and screw in the threaded base
secure it with a straight blade screw driver.
It’s that simple.
Packet Quantity:
5, 10 or 20 sets solid brass cambered head chicago screws
2 parts per set
Cambered Head top 4mm post
screw base.
Dimensions:
Parts: 4mm post height
Head
Top: 8mm diameter flat head
Total height: 8.6mm high (including head and base screw)
Top post height: 3.8mm (inside head and screw base)
Post Diameter: 4mm
Base Screw
Base: 8mm diameter
height: 6.1mm (including head)
Threaded post height: 4.4mm
Thread post width: 3mm diameter
Parts: 8mm post height
Head
Top: 8mm diameter flat head
Total height: 12.5mm high (including head and base screw)
Top post height: 7.9mm (between head and screw base)
Post Diameter: 4mm
Base Screw
Base: 8mm diameter
height: 8.6mm (including head)
Threaded post height: 6.8mm
Thread post width: 3mm diameter
Parts: 15mm post height
Head
Top: 8mm diameter flat head
Total height: 19.2mm high (including head and base screw)
Top post height: 14.9mm (inside head and screw base)
Post Diameter: 4mm
Base Screw
Base: 8mm diameter
height: 10mm (including head)
Threaded post height: 7.9mm
Thread post width: 3mm diameter
Base material – Solid Brass
